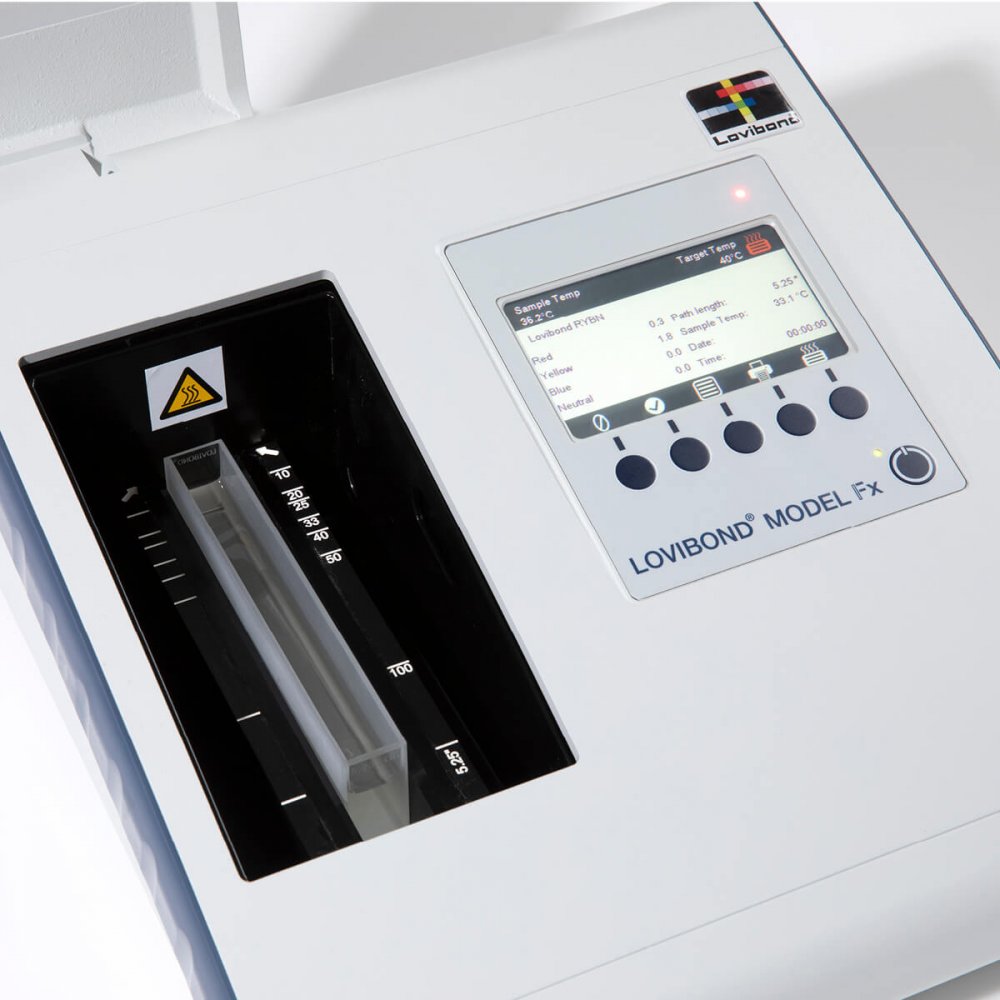

Lovibond Model Fx Colorimeter

Model Fx
Accurate Measurement of the Colour of Edible Oils at the Correct Temperature

Part Number: 169200

Applications: Edible Oils and Fats

Colour Scales

Lovibond® RYBN Colour
Lovibond® 10:1
AOCS-Tintometer Colour (AOCS Cc 13b-45 the Wesson Method, AOCS Cc 8d-55, AOCS Cc 13j-97)
Chlorophyll A (AOCS Cc 13d-55)
Beta Carotene (BS684 Section 2.20)

Technical Data
Applicable Standard	AOCS Cc 8d-55 AOCS Cc 13b-45 AOCS Cc 13d-55 AOCS Cc 13e-92 AOCS Cc 13j-97 BS684 BS684 Section 2.20 Chinese GB/T 22460-2008 ISO 15305
Colour Type	Transparent
Wavelength Range	380 - 780 nm
Wavelength Accuracy	0.2 nm
Spectral Alan	< 15 nm
Photometric Range	0 - 100 % T
Photometric Linearity	± 0.01 % T
Stray Light	< 0.01 % T
Interfaces	USB RS 232
Detector	Spectrometer
Repeatability	± 0.5 % T
Portability	Benchtop
Languages User Interface	English, German, French, Italian, Portuguese, Spanish, Russian, Chinese, Japanese
Dimensions	301 x 152 x 331 mm
Weight	5.16 kg
