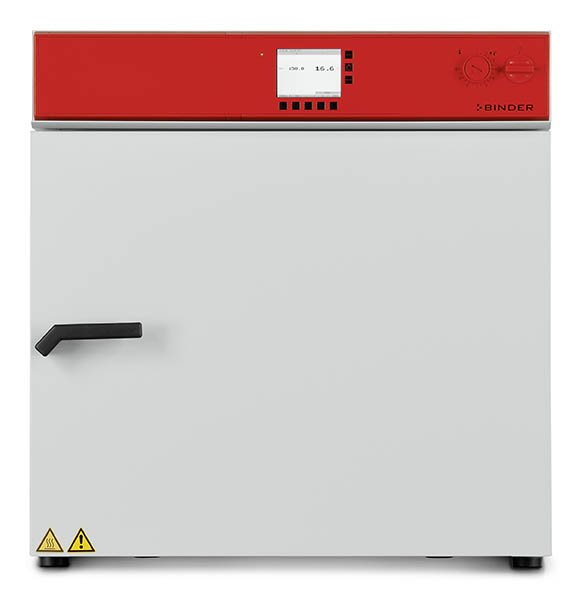

Binder | Model M 115 | Drying and Heating Chambers with Forced Convection and Advanced Program Functions

Binder Test Cihazları Türkiye Distribütörü | Enfor

* Sıcaklık aralığı: Ortam sıcaklığının +5 °C üzerinden +300 °C' ye kadar
* APT.line™ ön ısıtma kabini teknolojisi
* Ayarlanabilir fan hızı
* Program kontrollü havalandırma kapağı
* Zaman dilimli programlamalı renkli LCD kontrolcü
* 2 krom kaplamalı raf
* Class 2 Görsel alarmlı bağımsız ayarlanabilir sıcaklık güvenlik cihazı (DIN 12880)
* Bilgisayar arayüzü: RS 422

Description	M115-230V *

Article Number	9010-0202
Performance Data Temperature
Temperature range +5 °C above ambient temperature to [°C]	300
Temperature variation at 150 °C [± K]	2.5
Temperature fluctuation at 150 °C [± K]	0.3
Heating-up time to 150 °C [min]	16
Recovery time after 30 seconds door open at 150 °C [min]	3
Air change data
Air change (approx.) at 150 °C [x/h]	96
Electrical data
Rated Voltage [V]	230
Power frequency [Hz]	50/60
Nominal power [kW]	1.6
Phase (Nominal voltage)	1~
Measures
Interior volume [L]	115
Net weight of the unit (empty) [kg]	89
Permitted load [kg]	50
Load per rack [kg]	20
Wall clearance back [mm]	160
Wall clearance sidewise [mm]	100
Internal Dimensions
Width [mm]	600
Height [mm]	480
Depth [mm]	410
Housing dimensions not incl. fittings and connections
Width net [mm]	835
Height net [mm]	865
Depth net [mm]	645
Environment-specific data
Energy consumption at 150 °C [Wh/h]	544
Fixtures
Number of shelves (std./max.)	2/6
