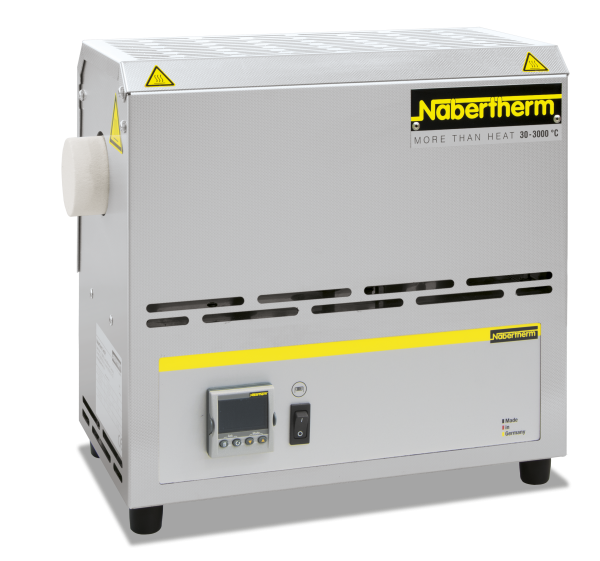

Compact Tube Furnaces up to 1100 °C
The RD 30/200/11 tube furnace impresses with its very good price-performance ratio, particularly compact external dimensions and its low weight. This all-rounder is equipped with a working tube, which also serves as support for the heating wires. The working tube is therefore part of the furnace heating, with the advantage that the tube furnace reaches very high heating speeds. The furnace is designed for horizontal use up to 1100 °C.
Standard Equipment
Tmax 1100 °C
Dual shell housing made of textured stainless steel sheets with additional fan cooling for low surface temperature
Exclusive use of insulation materials without categorization according to EC Regulation No. 1272/2008 (CLP)
Inner diameter of the tube: 30 mm, heated length: 200 mm
Ceramic working tube C 530 including two fiber plugs for operation under air
Thermocouple type K (1100 °C)
Solid state relays provide for lownoise operation
Heating wires wound directly around the working tube resulting in very fast heat-up rates
Defined application within the constraints of the operating instructions
Controller R7a
Model |
Tmax1 |
Outer dimensions2 in mm |
Inner tube Ø |
Heated length |
Length constant |
Connected |
Heating time3 |
Electrical |
Weight |
||
---|---|---|---|---|---|---|---|---|---|---|---|
|
in °C |
W |
D |
H |
in mm |
in mm |
temperature1 +/− 5 K in mm |
load in kW |
in min |
connection* |
in kg |
Nabertherm RD 30/200/11 Model Laboratory Furnace |
1100 |
350 |
200 |
350 |
30 |
200 |
65 |
1.5 |
20 |
1-phase |
12 |
