Compact Tube Furnaces up to 1300 °C

Compact Tube Furnaces up to 1300 °C

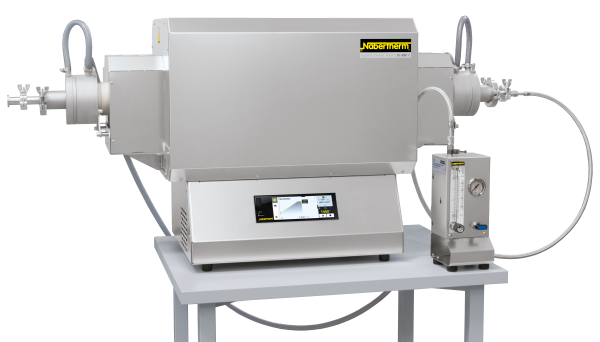

These compact tube furnaces with integrated control systems can be used universally for many processes. Equipped with a standard working tube of C 530 ceramic and two fiber plugs, these tube furnaces have a very good price/performance ratio.

Standard Equipment
Tmax 1200 °C or 1300 °C
Single-zoned design
Dual shell housing made of textured stainless steel sheets with additional fan cooling for low surface temperature
Exclusive use of insulation materials without categorization according to EC Regulation No. 1272/2008 (CLP)
Outer tube diameter of 50 mm to 170 mm, heated length from 250 mm to 1000 mm
Ceramic working tube C 530 including two fiber plugs for operation under air
Thermocouple type N (1200 °C) or type S (1300 °C)
Solid state relays provide for lownoise operation
Heating elements on support tubes provide for free radiation
Defined application within the constraints of the operating instructions
NTLog Basic for Nabertherm controller: recording of process data with USB-flash drive
Controller B510 (5 programs with each 4 segments)



Model

Tmax1

Outer dimensions3 in mm

Outer tube Ø

Heated

Length constant1

Tube length

Connected

Electrical

Weight













length

temperature +/− 5 K in mm



load







in °C

W2

D

H

in mm

in mm

single-zoned

three-zoned

in mm

in kW

connection*

in kg

R 50/250/12

1200

434

340

508

50

250

80

-

450

1.6

1-phase

22

R 50/500/12

1200

670

340

508

50

500

170

250

700

2.34

1-phase

34

R 120/500/12

1200

670

410

578

120

500

170

250

700

6.5

3-phase

44

R 170/750/12

1200

920

460

628

170

750

250

375

1070

10.0

3-phase

74

R 170/1000/12

1200

1170

460

628

170

1000

330

500

1400

11.5

3-phase

89



























R 50/250/13

1300

434

340

508

50

250

80

-

450

1.6

1-phase

22

R 50/500/13

1300

670

340

508

50

500

170

250

700

2.34

1-phase

34

R 120/500/13

1300

670

410

578

120

500

170

250

700

6.5

3-phase

44

R 170/750/13

1300

920

460

628

170

750

250

375

1070

10.0

3-phase

74

R 170/1000/13

1300

1170

460

628

170

1000

330

500

1400

11.5

3-phase

89
