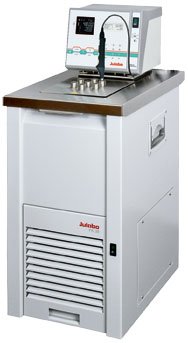

FK30-SL - Calibration Bath

Technical Data;
Working temperature range (° C): -30 ... +200
Temperature stability (° C): ± 0.005
Setting / display resolution: 0.01
Integrated programmer: 6x60 steps
Temperature Display: VFD, LCD
Heating capacity (kW): 2
Cooling capacity (Medium Ethanol): ° C -20, 0.15 kW
Pump capacity flow rate (l / min): 22-26
Pump capacity flow pressure (bar): 0.4-0.7
Pump capacity flow suction (bar): 0.2-0.4
Bath opening / bath depth (W x L / D cm): Ø = 12/17 cm
Filling volume (liters): 14
Refrigerant stage 1: R134a
Filling volume refrigerant stage 1 (g): 163
Global Warming Potential for R134a: 1430
Carbon dioxide equivalent stage 1 (t): 0.233
External Pt100 sensor connection: integrated
Digital interfaces: RS232
Optional Profibus
Ambient temperature: 5 ... 40 ° C
Dimensions W x L x H (cm) 32 x 45 x 79
Weight (kg): 48
Classification according to DIN12876-1: Classification III (FL)
Included with each unit: Including bath cover with 7 openings.
Bath cover: integrated
Cooling of compressor: Air
