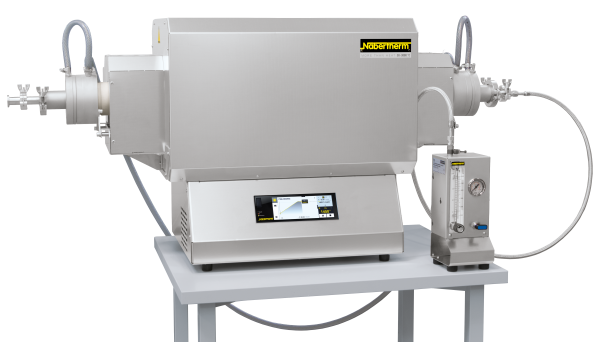

High-Temperature Tube Furnaces with SiC Rod Heating up to 1500 °C
.png)
These compact tube furnaces with SiC rod heating and integrated switchgear with controller can be used universally for many processes. They represent an inexpensive variant in the high-temperature range. The standard mounting options for accessories make them flexible in use for a wide range of applications. The SiC heating elements arranged parallel to the working tube provide for an excellent temperature uniformity.
Standard Equipment
Tmax 1500 °C
Dual shell housing made of textured stainless steel sheets with additional fan cooling for low surface temperature
Exclusive use of insulation materials without categorization according to EC Regulation No. 1272/2008 (CLP)
Active cooling of housing for low surface temperatures
Ceramic working tube C 799 including two fiber plugs for operation under air
Type S thermocouple
Solid state relays provide for lownoise operation
SiC heating elemens, easy to replace
Defined application within the constraints of the operating instructions
NTLog Basic for Nabertherm controller: recording of process data with USB-flash drive
Controller B510 (5 programs with each 4 segments)
|
Model |
Tmax3 |
Outer dimensions4 in mm |
Outer tube Ø |
Heated length |
Length constant |
Tube length |
Connected |
Electrical |
Weight |
||
|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
in °C |
W |
D |
H |
in mm |
in mm |
temperature3 +/− 5 K in mm |
in mm |
load in kW |
connection* |
in kg |
|
RHTC 80/230/15 |
1500 |
600 |
440 |
585 |
80 |
230 |
80 |
600 |
7.5 |
3-phase2 |
50 |
|
RHTC 80/450/15 |
1500 |
820 |
440 |
585 |
80 |
450 |
150 |
830 |
11.3 |
3-phase1 |
70 |
|
RHTC 80/710/15 |
1500 |
1075 |
440 |
585 |
80 |
710 |
235 |
1080 |
13.8 |
3-phase1 |
90 |
