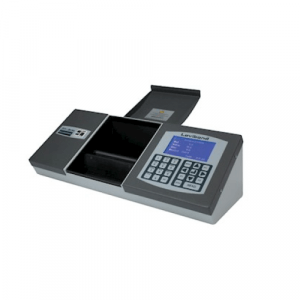

Lovibond PFXi-955 Series PFXi-955 heated Colorimeter

PFXi-995 heated
Colour Measurement for Transparent Samples

Part Number:1379951H

Applications: Chemicals I Edible Oils and Fats I Food and Beverage I Household Products I Petroleum Oils and Waxes

Colour Scales

AOCS-Tintometer Colour (AOCS Cc 13b-45 the Wesson Method, AOCS Cc 8d-55, AOCS Cc 13j-97)

FAC Colour (AOCS Cc 13a-43)

Gardner Colour (ASTM D 1544, ASTM D 6166, AOCS Td 1a, MS 817 Part 10)

Iodine Colour (DIN 6162)

Lovibond® RYBN Colour

Chlorophyll A (AOCS Cc 13d-55)

Hess-Ives Colour Units (DGK F050.2)

Kreis Value

Pt-Co

Beta Carotene (BS684 Section 2.20)

CIE L* a* b

Transmission %

Optical Density

Absorbance

Technical Data
Applicable Standard	AOCS Cc 8d-55 AOCS Cc 13a-43 AOCS Cc 13b-45 AOCS Cc 13d-55 AOCS Cc 13e-92 AOCS Cc 13j-97 AOCS Dd 5 ASTM D1209 ASTM D1544 ASTM D6166 ASTM E308 BS684 BS684 Section 2.20 DIN 6162 ISO 6271 ISO 15305
Colour Type	Transparent
Display	240 x 128, back-lit graphic display, (white on blue)
Path Length	0.1 - 153 mm (0.004" - 6")
Measuring Geometrics	0° - 180° Transmission
Interfaces	USB RS 232 Ethernet
Detector	blue enhanced photodiode
Internal Storage	100,000+ Messungen
Measuring Principle	16 interference filters
Measurement Time	less than 30 seconds
Sample Chamber	max 6" (153mm) cells
Spectral Range	420 – 710 nm
Bandwidth	10 nm
Repeatability	±0.0002 (CIE xy Chromaticity) on measurements of de-ionised water
Baseline Calibration	Single key press; fully automated
Illuminants	CIE Illuminant A CIE Illuminant B CIE Illuminant C CIE Illuminant D65
Portability	Benchtop
Observer	2°, 10°
Compliance	CE RoHS WEEE
Languages User Interface	English, German, French, Italian, Portuguese, Spanish, Russian, Chinese, Japanese
Dimensions	515 x 170 x 196 mm
Weight	7.7 kg
