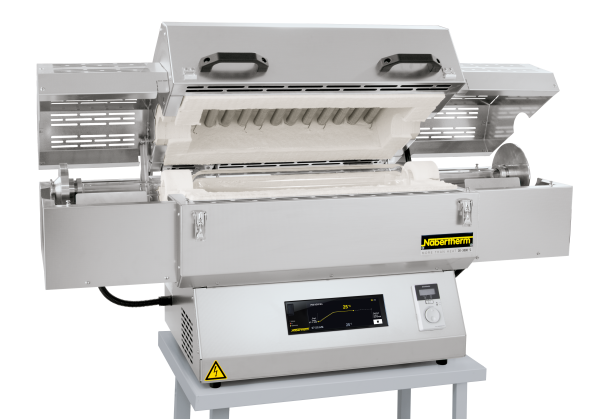

Rotary Tube Furnaces for Batch Operation up to 1100 °C

The rotary tube furnaces of the RSRB series are suited for batch operation. The rotation of the working tube ensures that the charge is in motion. Due to the shape of the quartz reactor with the tapered pipe ends the batch is kept in the rotary tube furnace and can be heat-treated an arbitrarily long time period time. A controlled heating to the temperature profiles is also possible.

Standard Equipment
Tmax 1100 °C
Single-zoned design
Dual shell housing made of textured stainless steel sheets with additional fan cooling for low surface temperature
Exclusive use of insulation materials without categorization according to EC Regulation No. 1272/2008 (CLP)
Thermocouple type N
Solid state relays provide for lownoise operation
Heating elements on support tubes provide for free radiation
Tube furnace designed as table-top model with quartz glass reactor which opens on both sides, tapered ends
Reactor is removed for emptying out of the rotary tube furnace. Beltless drive and hinged furnace housing (opening temperature < 180 °C) provide for very easy removal through
Adjustable drive of approx. 1-40 rpm
Defined application within the constraints of the operating instructions
NTLog Basic for Nabertherm controller: recording of process data with USB-flash drive
Controller B510 (5 programs with each 4 segments)
