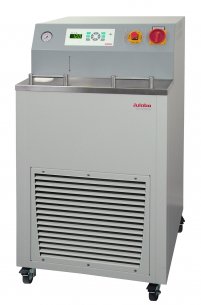

SC10000w - SemiChill Compact Recirculating Cooler

Technical Data;
Working temperature range (° C): +5 ... +35 Standard
                                                    : -20 ... +130 Option
Temperature stability (° C): ± 0.1
Setting / display resolution: 0.1 ° C
Integrated programmer: 1x10 steps
Temperature Display: LED Option
Heating capacity (kW): 0 Standard
                                    : 12.0 Option
Cooling capacity (Medium Ethanol) @ 20 ° C: 10 kW
Pump capacity flow rate (l / min): 33
Pump capacity flow pressure (bar): 3.5 Standard
: 4.3 Option
Bath opening / bath depth (W x L / D cm): Ø = 7 / - cm
Pump connections: NPT 3/4 "
Barbed fittings diameter (inner dia. / Mm): 3/4 "
Filling volume (liters): 43 ... 60
Refrigerant stage 1: R452A
Filling volume refrigerant stage 1 (g): 1800
Global Warming Potential for R452A: 2140
Carbon dioxide equivalent stage 1 (t): 3.852
External Pt100 sensor connection: integrated
Digital interfaces: RS232
Optional: Profibus
Ambient temperature: 5 ... 40 ° C
Dimensions W x L x H (cm): 59 x 67 x 112
Weight (kg): 159
Sound pressure level (distance 1 m) max. (dBA): 69
Classification according to DIN12876-1: Classification III (FL)
Cooling of compressor: Water
