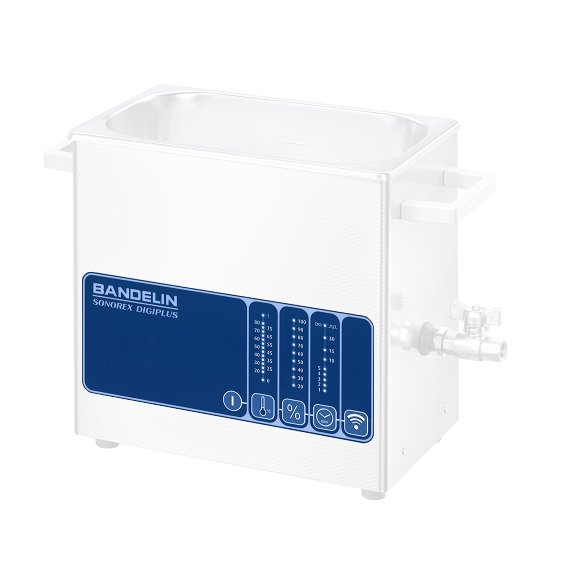

Sonorex Digiplus Ultrasonic Baths

Sonorex Digiplus Ultrasonic Baths

High-power ultrasonic baths with power control
Cleaning of sensitive materials
Mixing of samples
Homogenizing of samples for analysis
Fast degassing of solvents for HPLC
Features
Power control from 20 to 100 %
Heating from 20 to 80 °C, thermostatically adjustable, LED display
Optical LED signal in case of excess temperature
Automatic short-time extra ultrasound during heating up period to avoid delay in boiling - switch-off possible
Timer for countdown or continuous operation
DEGAS - quick degassing
SweepTec® - permanent sound field oscillation ensures even and gentle cleaning
Automatical safety shut-down 12 hours after last keypress
Marking of filling level for safe dosage
Drain valve for simple emptying, one-piece welded drain bow
Protection class IP 33 at highest possible level through liquid-tight mains cable and housing front without openings



Internal tank dimensions
(l × w ×d)

Capacity

Type

Code No.

Drain ball valve

External dimensions
(l × w × h)

mm

l







mm

240×140×100

3,0

DL 102 H

7180

G 1/4

260×160×250

500×140×150

9,0

DL 156 BH

7181

G 1/4

530×165×300

300×150×150

5,5

DL 255 H

7182

G 1/4

325×175×295

300×240×150

9,7

DL 510 H

7183

G 1/2

325×265×305

300×240×200

13,0

DL 512 H

7184

G 1/2

325×265×350

325×300×200

18,7

DL 514 BH

7185

G 1/2

355×325×385

500×300×200

28,0

DL 1028 H

7186

G 1/2

535×325×400
